DYMO-Hair 🤖💈

Generalizable Volumetric DYnamics MOdeling for Robot Hair Manipulation

arXiv Code Simulator

Team

Chengyang Zhao

Chengyang Zhao1
Uksang Yoo

Uksang Yoo1
Arkadeep Narayan Chaudhury

Arkadeep Narayan Chaudhury2
Giljoo Nam

Giljoo Nam3
Jonathan Francis

Jonathan Francis1,4
Jeffrey Ichnowski

Jeffrey Ichnowski1
Jean Oh

Jean Oh1

1 Carnegie Mellon University

2 Epic Games

3 Meta Codec Avatars Lab

4 Bosch Center for AI



TL;DR



Hair State Representation for Dynamics Modeling

Static State

Strands

Point Cloud

Voxel Grid
[Proposed]

Grid Corresponding
Strand Segments [Proposed]

Dynamics Process

Strands

Point Cloud

Voxel Grid
[Proposed]

Grid Corresponding
Strand Segments [Proposed]

Design Highlight

Representing hair state as a high-resolution volumetric occupancy grid with a 3D orientation field, enabling:
  • Capturing both the spatial distribution and the flow direction of hair, achieving high fidelity.
  • Efficient and robust state estimation from multi-view RGB-D data in the real world.
  • More structured processing with highly optimized neural operators and dense voxel-level supervision for learning.
  • Maintaining acceptable accuracy when resolution is sufficiently high.

Hair Combing Dynamics Learning

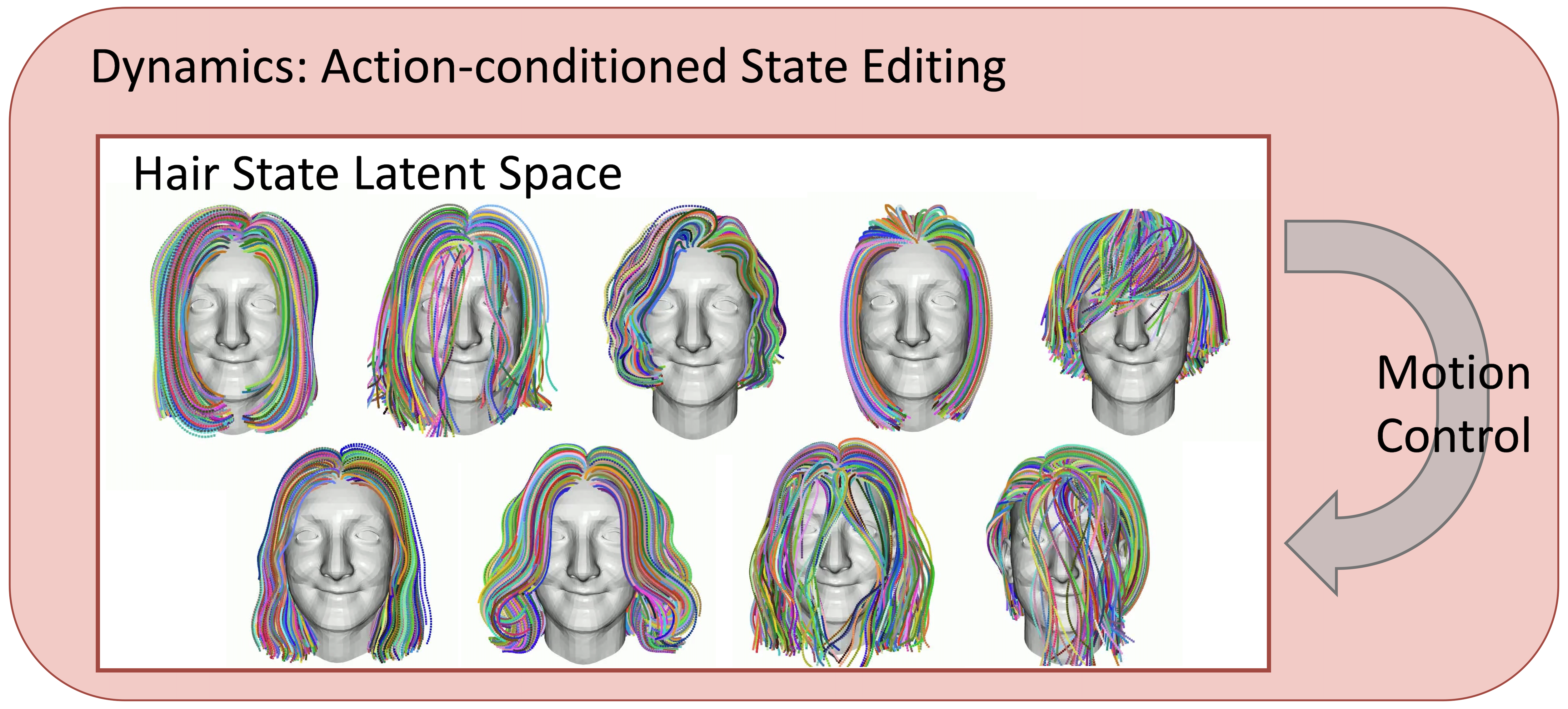

Hair Dynamics Model Overview

Design Highlight

A novel two-phase neural dynamics learning paradigm, designed for generalizable volumetric hair dynamics modeling.
  • Phase 1: Pre-training a compact 3D latent space for diverse hair states (various hairstyles and deformations).
  • Phase 2: Adapting the pre-trained model with a ControlNet-style framework for dynamics learning, formulating the dynamics as an action-conditioned latent state editing process.

DYMO-Hair System: Visual Goal-conditioned Hair Styling

Design Highlight

  • A model-based, closed-loop system, capable of handling diverse hairstyles and visual goal configurations.

Strand-level, Contact-rich Hair Combing Simulation

Design Highlight

  • With all three constraints, the hair maintains a realistic shape.
  • The twist constraint, in particular, preserves the strand's curvature and prevents gravity-induced oversmoothing.

Dynamics Learning Results on Unseen Hairstyles

Key Takeaway

  • Our model outperforms all baselines in capturing local deformation for unseen hairstyles, highlighting the effectiveness and generalizability of our model on hair-combing dynamics modeling.

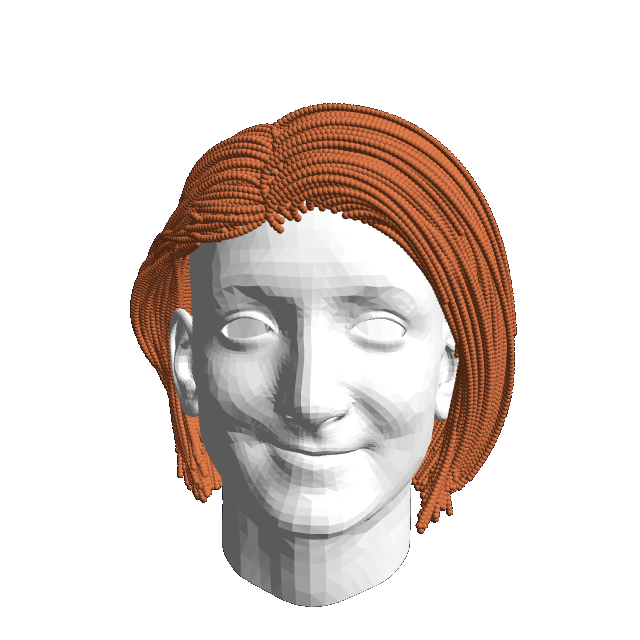

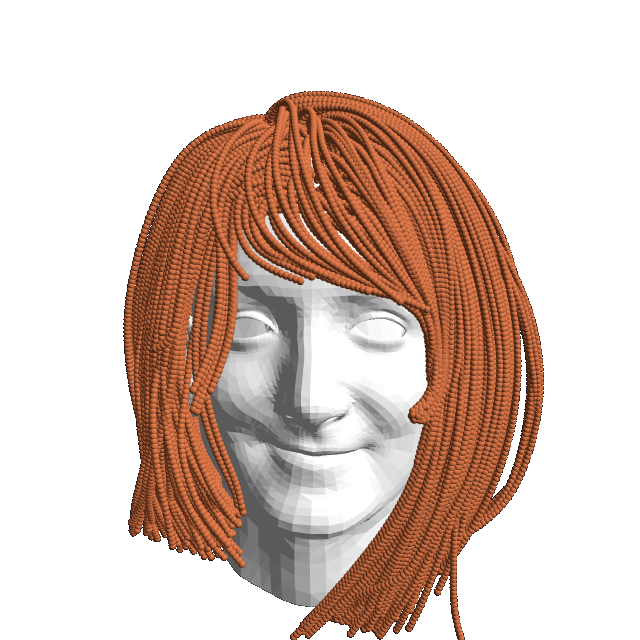

Hair Styling Simulation Results on Unseen Hairstyles

All Method Comparisons on Hard Cases

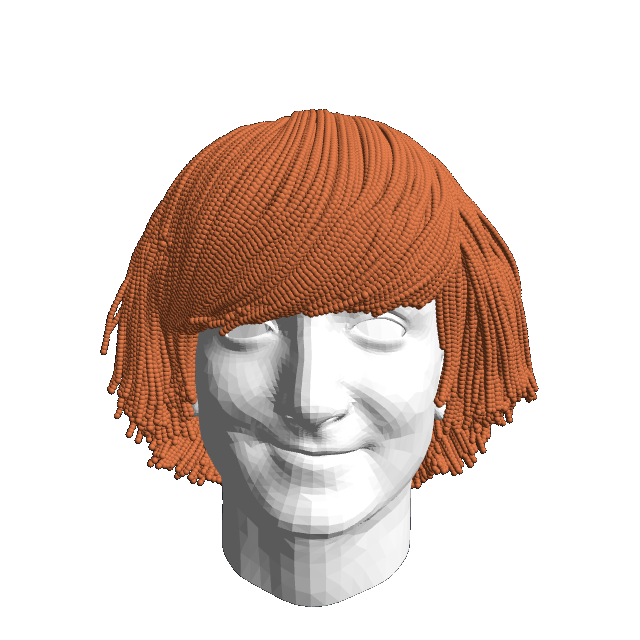

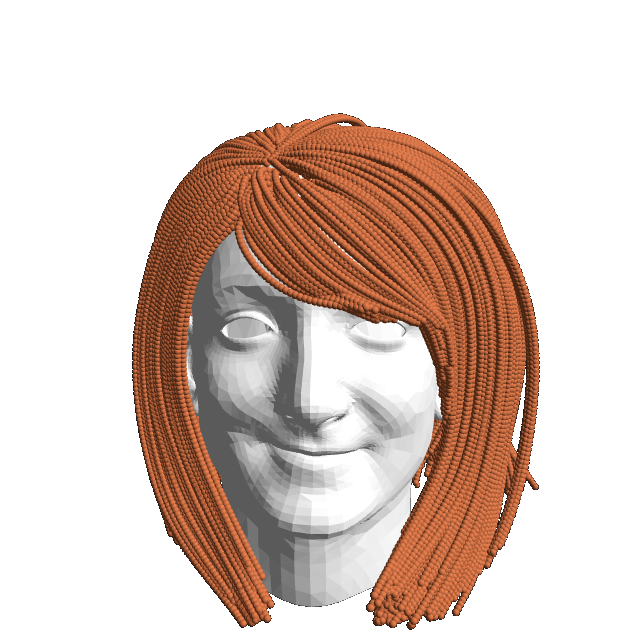

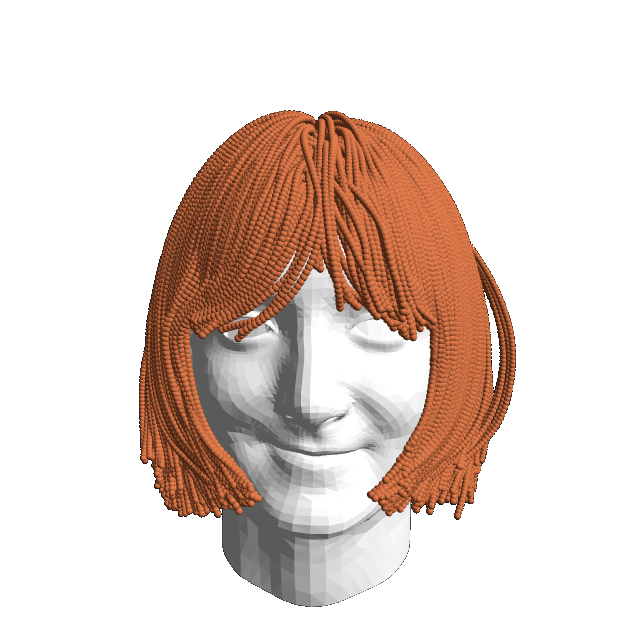

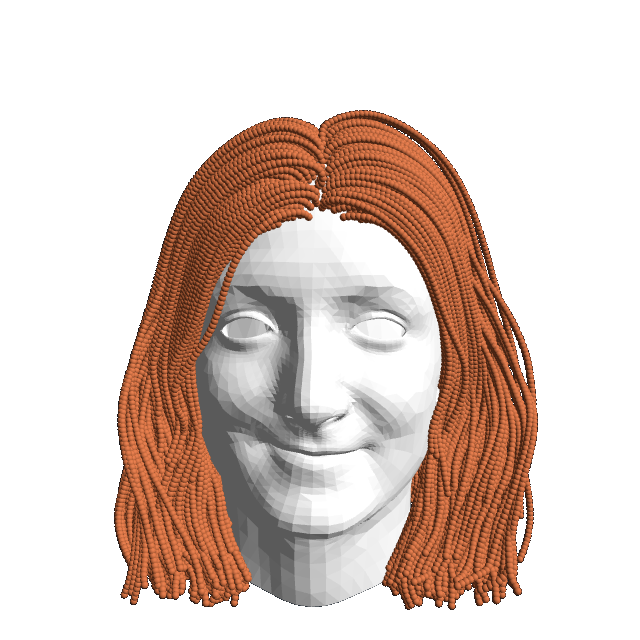

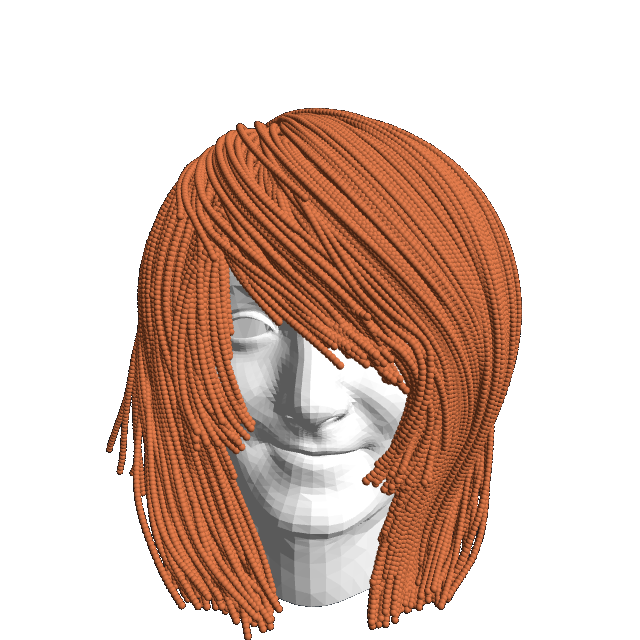

Goal

Goal Image

DYMO-Hair (Ours)

Rule-based System

PC-GNN System

V-UNet System

V-FiLM System

Goal

Goal Image

DYMO-Hair (Ours)

Rule-based System

PC-GNN System

V-UNet System

V-FiLM System

Goal

Goal Image

DYMO-Hair (Ours)

Rule-based System

PC-GNN System

V-UNet System

V-FiLM System



DYMO-Hair (Ours) on More Various Messy Cases

Goal

Goal Image

Case A

Case B

Goal

Goal Image

Case A

Case B

Goal

Goal Image

Case A

Case B

Goal

Goal Image

Case A

Case B

Goal

Goal Image

Case A

Case B

Goal

Goal Image

Case A

Case B

Key Takeaway

  • DYMO-Hair successfully styles a wide range of unseen hairstyles with varying difficulty, surpassing both the state-of-the-art rule-based system and all model-based baselines.
  • Compared to the state-of-the-art rule-based system, DYMO-Hair reduces the final geometric error by 22% and achieves a 42% higher absolute success rate on average.
  • This highlights the benefit of incorporating a dynamics model and demonstrates the superior performance of our advanced model in boosting closed-loop manipulation at the system level.

Hair Styling Real-world Tests on Wigs

Rule-based System

DYMO-Hair (Ours)

Rule-based System

DYMO-Hair (Ours)

Key Takeaway

  • Real-world tests exhibit zero-shot transferability of DYMO-Hair to wigs, achieving consistent success on challenging unseen hairstyles where the state-of-the-art rule-based system fails.
  • Compared to the state-of-the-art rule-based system, DYMO-Hair is more robust to environmental variations, generalizes across hair lengths, and can effectively capture spatially long-horizon goals.

Acknowledgements

We would like to thank Feiyu Zhu and John Z. Zhang for their valuable feedback and discussions. This work was supported by NSF IIS-2112633 and NSF Graduate Research Fellowship under Grant No. DGE2140739.

Contact

If you have any questions, please feel free to contact Chengyang Zhao.
